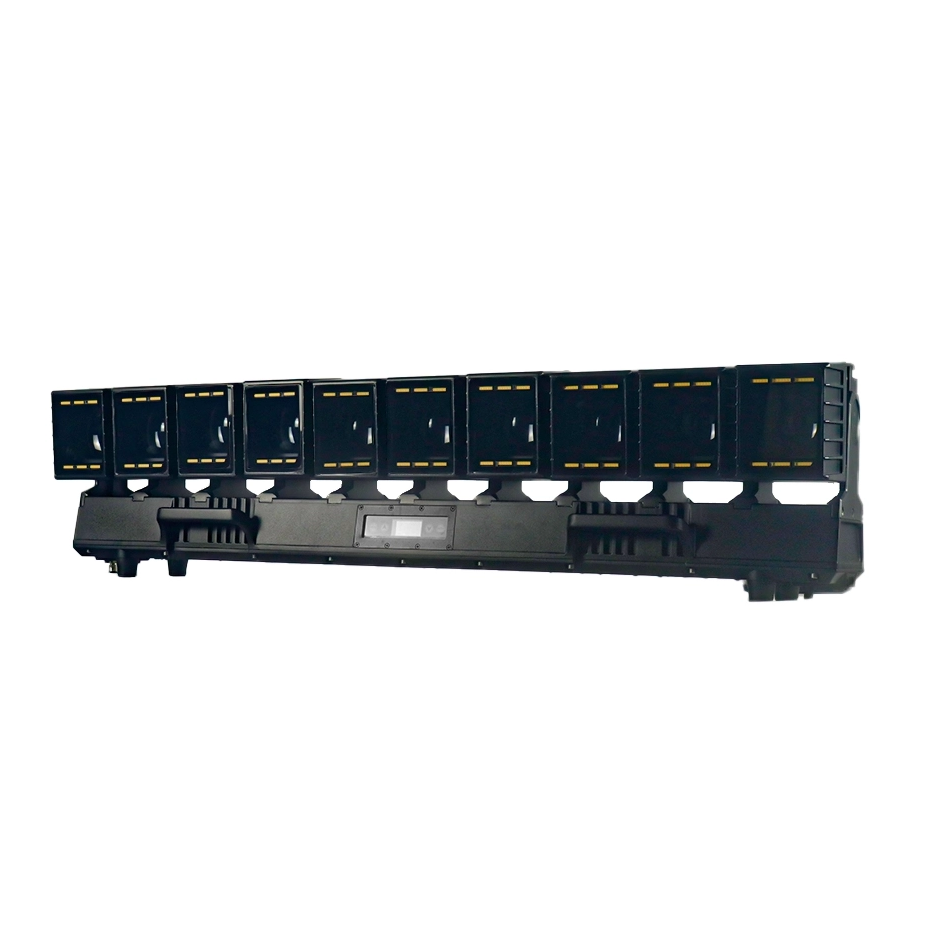

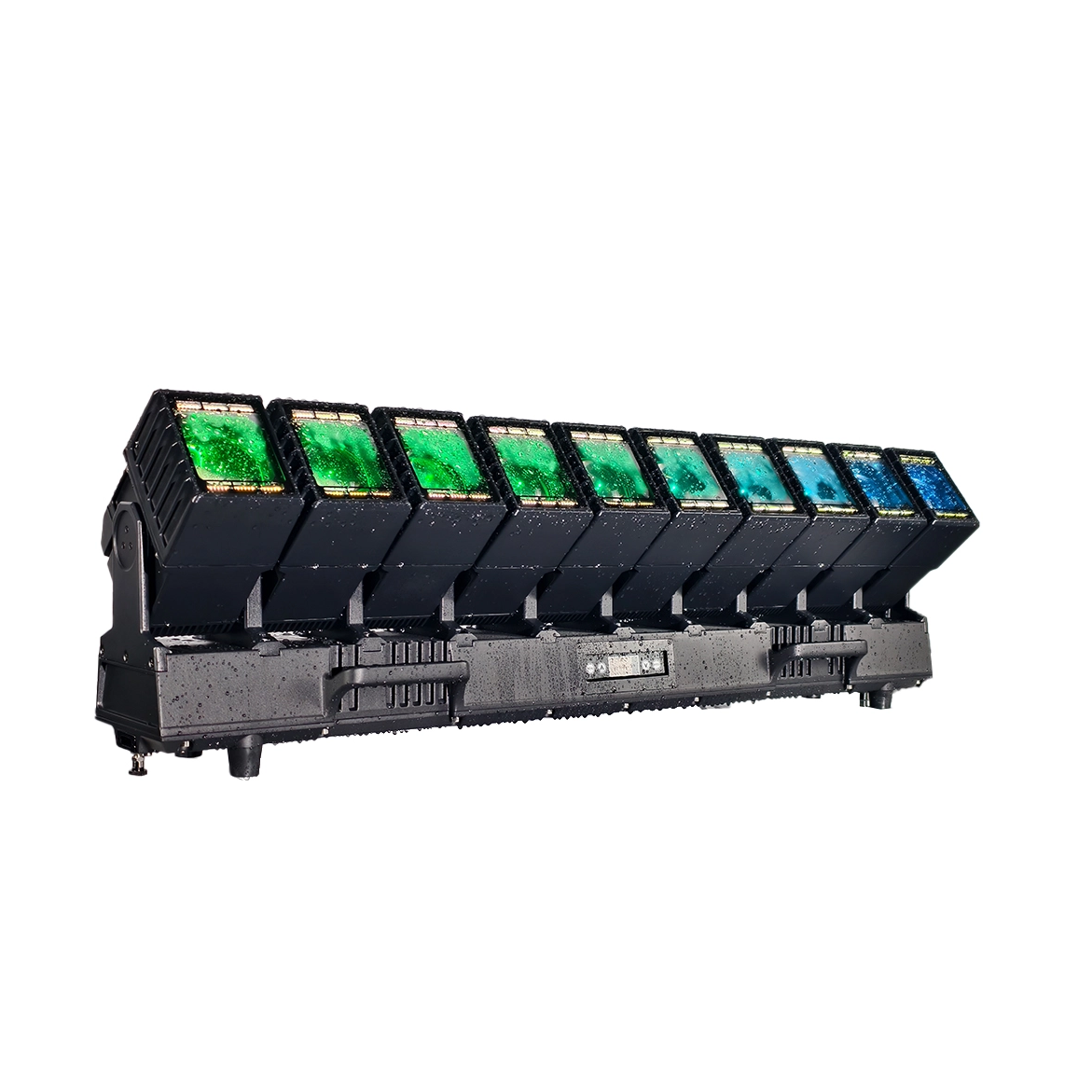

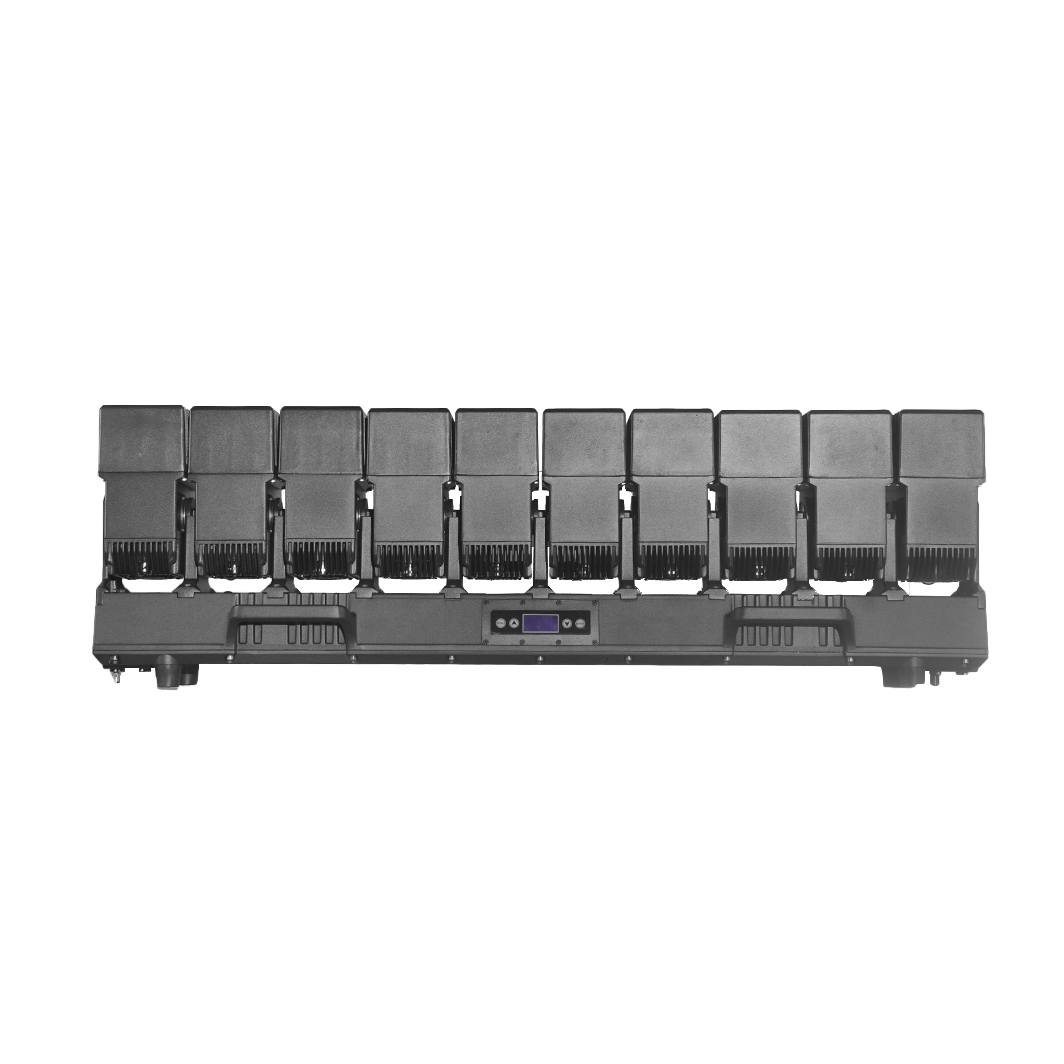

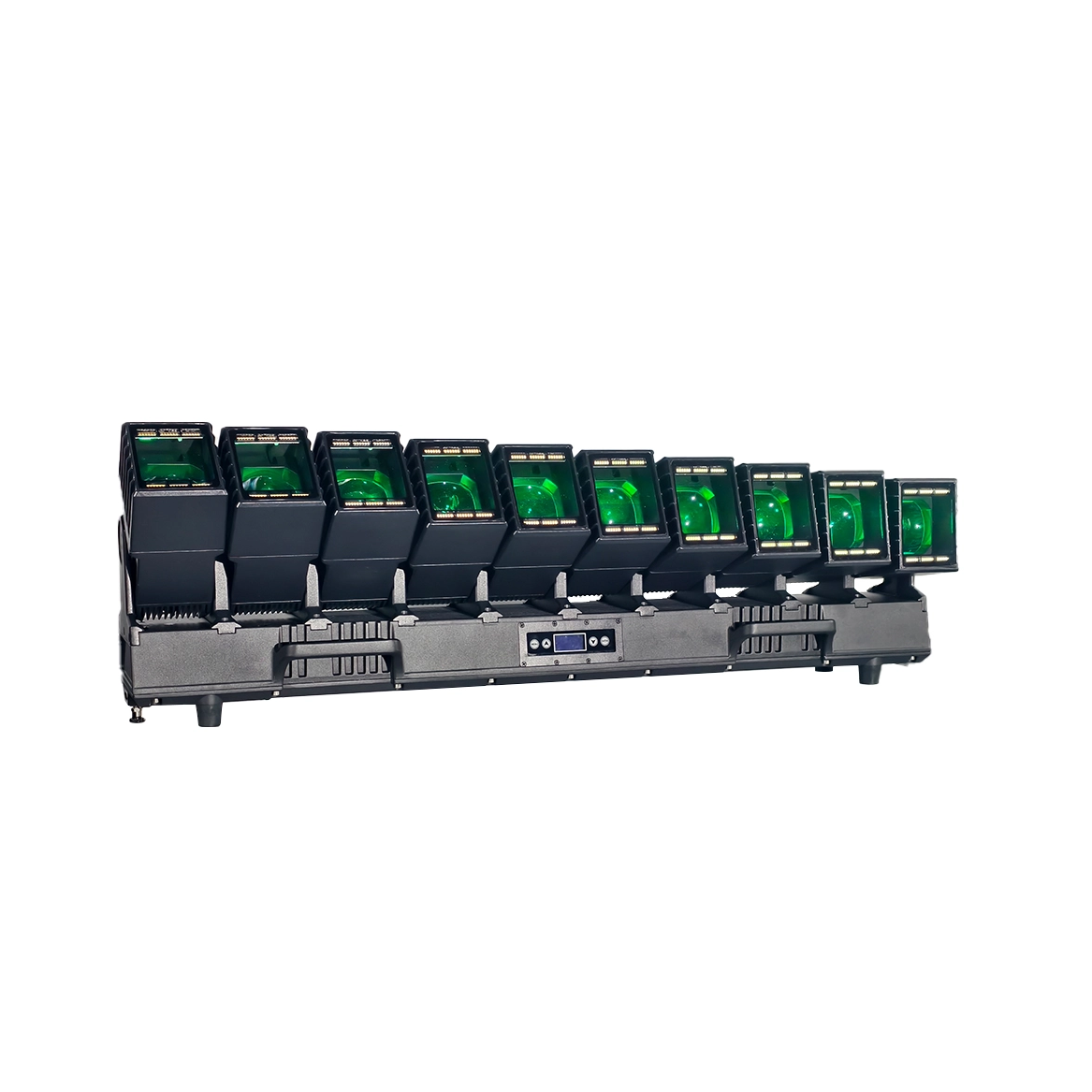

LED 1060 Wave

Light source:

• Main LED:10x60W RGBW LEDs

• Strobe 1: 120 pcs 1W 6500K Cool white

• Strobe 2: 120 pcs 1W 3000K Warm white

Optical System

• Main LED:

• Beam angle:4.5°-36°

• illuminance(4.5°):21,343 lux@ 5m

• illuminance(36°):1,653 lux@ 5m

• Total Lumen Output of Fixture: 8,380lm

Field Strobe:

• Field Strobe:(6500K):14.700lm

• Field Strobe:(3000K):12.250Im

• PWM adjustable: 600Hz，1200Hz，2000Hz，4000Hz，6000Hz，15000Hz

Other Effects

• LED：Single control

• Tilt Movement：90°，180°，200°

• Dimmer：0-100% electronics,4 different dimmer curves

• Strobe：0-25Hz selectable multiple strobe effects with different speeds。

• Zoom: 10 independent motorized zoom

• Color mixing：RGBW Color mixing or CMY Color mixing

Control

• Control protocol:：DMX，RDM，ArtNet，sACN

• DMX（Single control）：29，56，142，216，262，282

• DMX（Dual control）Function：10，37，56，62

• DMX（Dual control）LED：150，160，200

• Firmware Upgrade: Upgrade via DMX link or USB stick

Electrical and Connectors

• Input Voltage：200V-240V， 50/60Hz

• Power：1137W

• Data In/Out: 3-pin or 5-pin waterproof XLR connector

Work Environment

• Operating Temperature：-40°-45°

• Strike Temperature：-20°-45°

• Protection Rating: IP65

Physical Information

• Width : 1000mm

• Depth : 195mm

• Height : 335 mm

• Net Weight: 30.5KG

Flight Case Dimensions:

• Width : 1050mm

• Depth : 450mm

• Height : 580 mm

• Weight : 85.5kg  (two-pack loader case)
