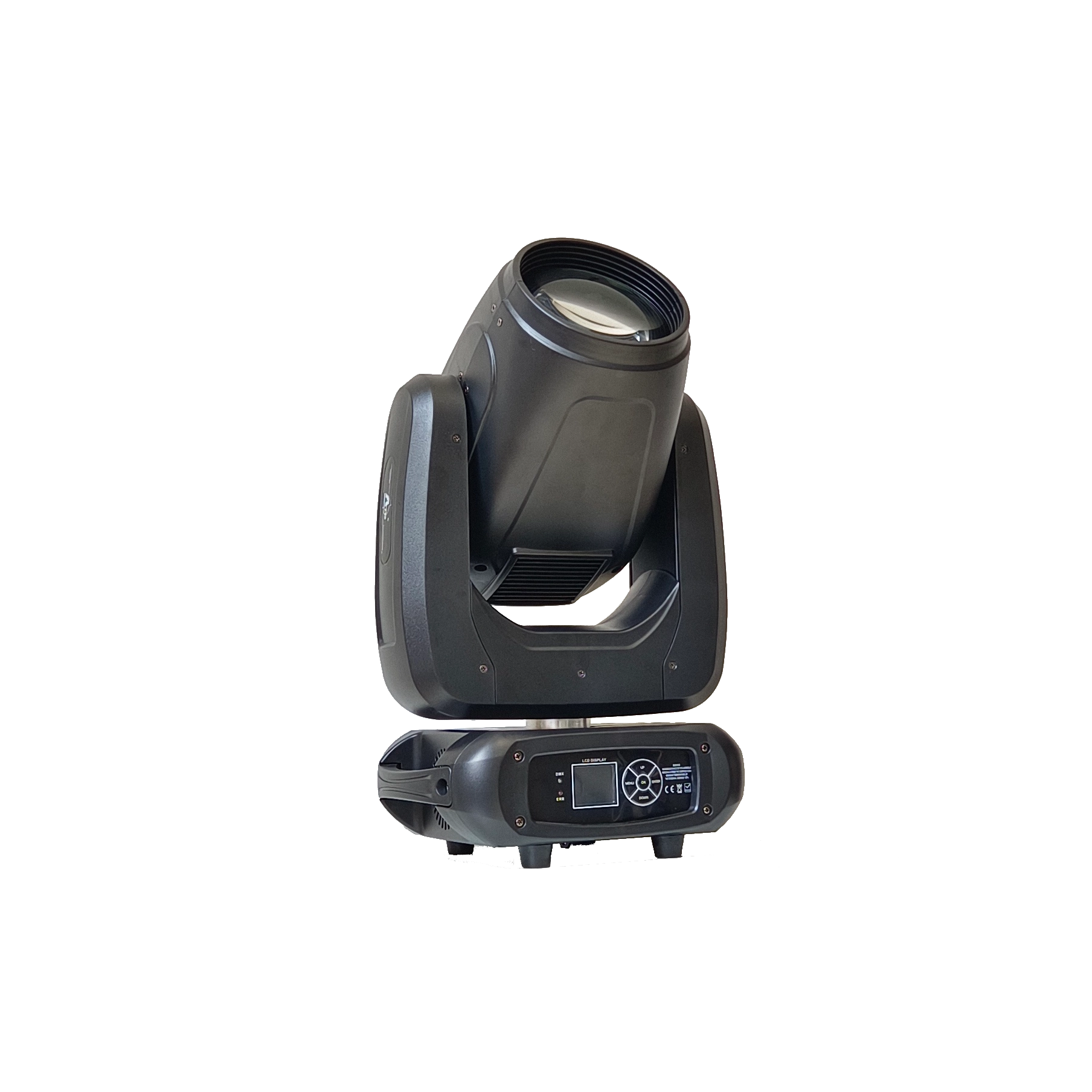

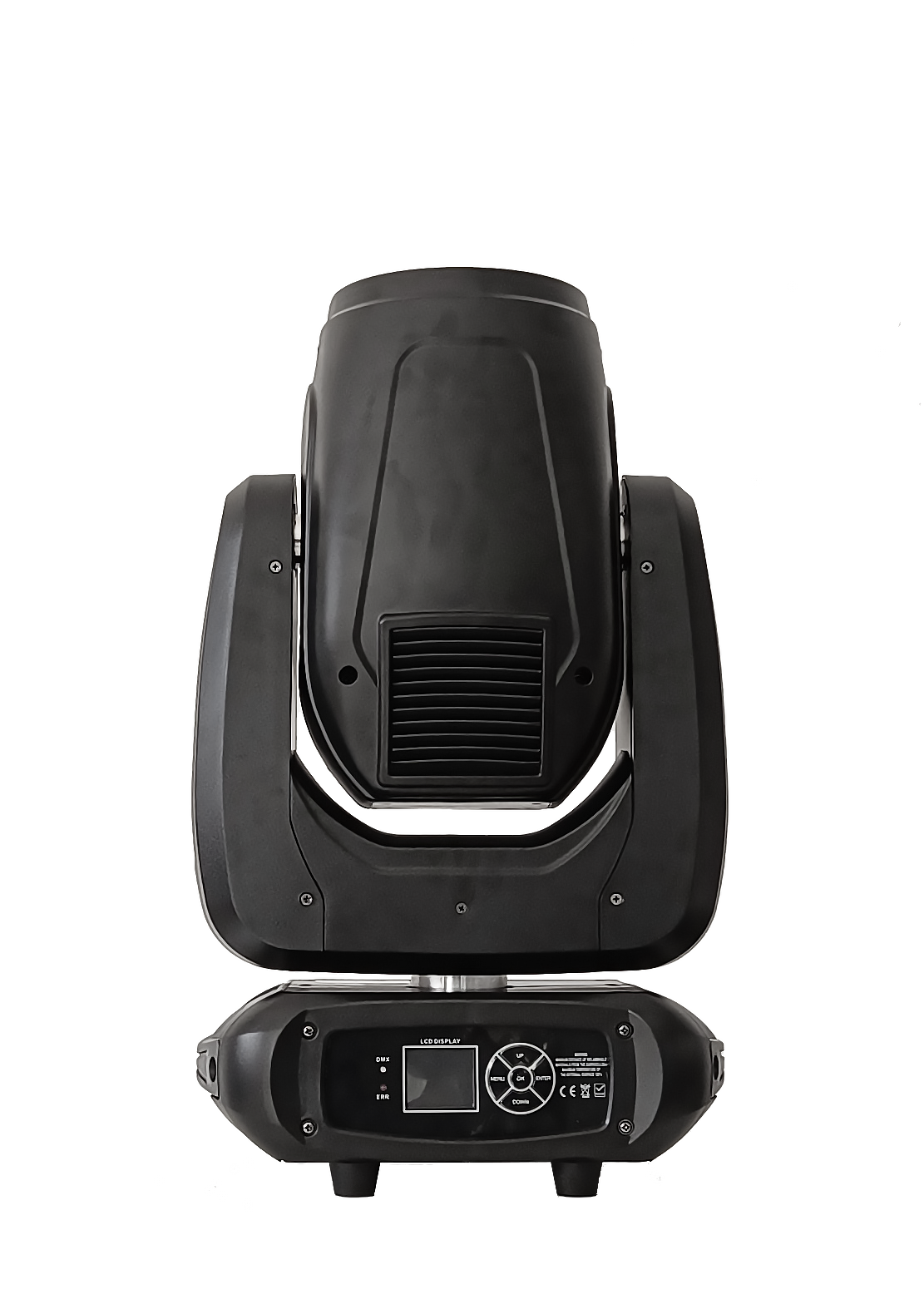

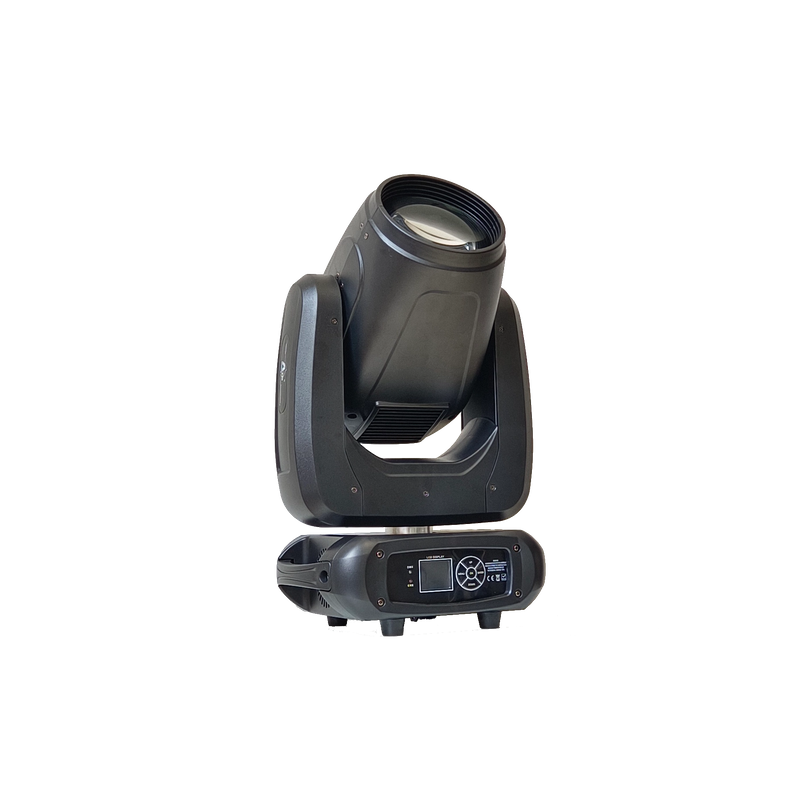

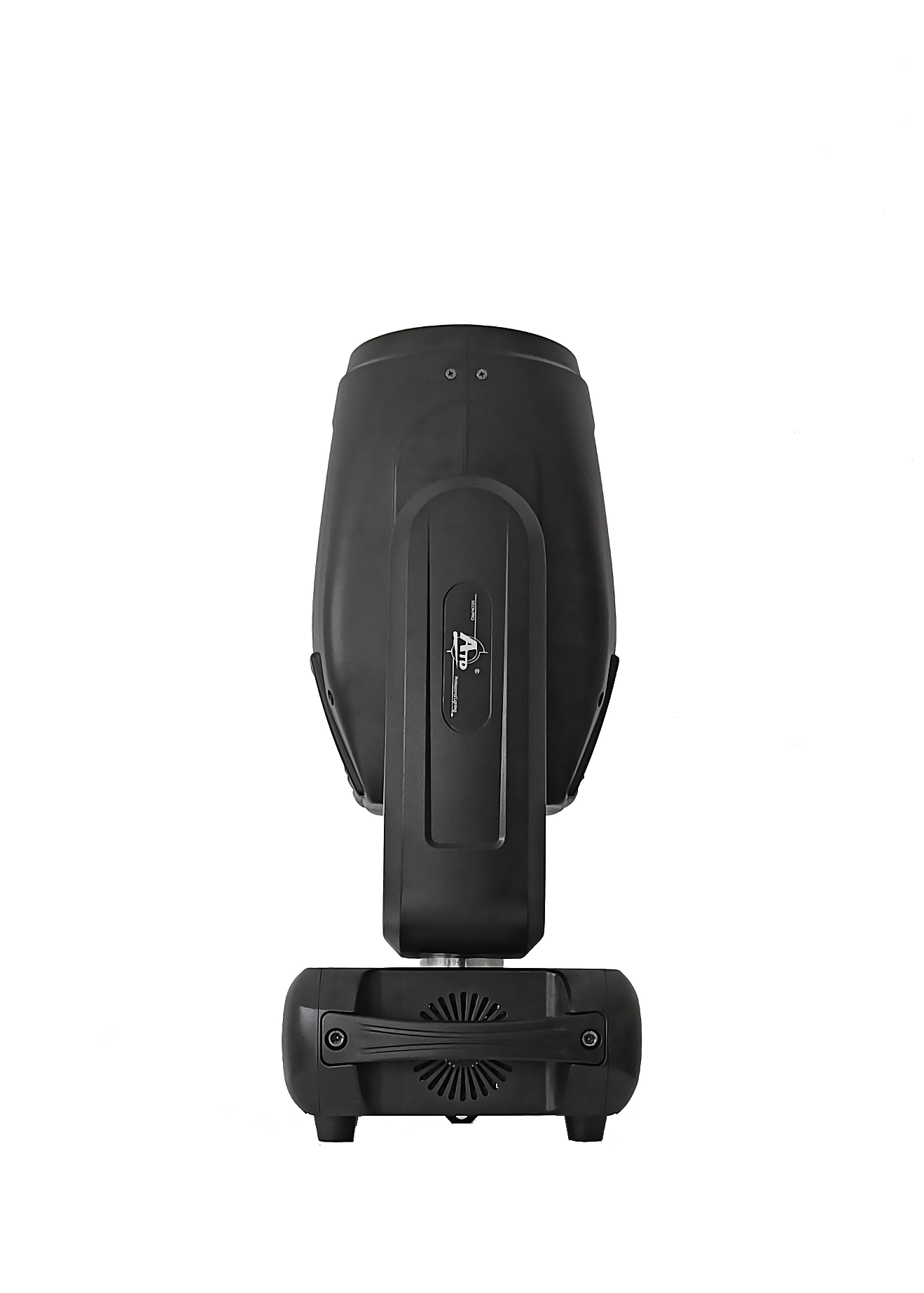

XEON PRO 300 BEAM

Electrical & Interface

• Input Voltage: AC 100-240V, 50-60Hz

• Power Consumption: 350W

Light Source

• Lamp: 280W discharge lamp

• Color Temperature: 8000K white (adjustable)

• Luminous Flux: 7950 lumens

Optical System

• Beam Angle: 4°

• Electronic Ballast: Power factor ≥0.99, THD<20‰

Color System

• Color Wheel:

• 14 dichroic filters + white

• Rainbow & half-color effects

Gobo System

• Gobo Wheel:

• 14 gobos + open white

• Gobo shake effect

Prism System

• Rotating Prisms:

• 8-facet + 16-facet + 24-facet prisms

• 16-facet linear prism

• Bidirectional rotation with precise positioning

Frost Filter

• Linear Frost: 0-100% variable frost + color effect

Control

• DMX Channels: 16 channels

• Control Modes:Auto/Sound-active、Master/Slave、3-pin DMX512

Effects

• Dimmer: 1-100% linear dimming

• Strobe: 1-14Hz adjustable strobe

• Focusing: High-quality condenser lens with focus adjustment

Pan & Tilt

• Pan Movement

• 540° rotation

• 8-bit/16-bit resolution

• Adjustable speed

• Tilt Movement

• 270° rotation

• 8-bit/16-bit resolution

• Adjustable speed

 Work Environment

• Maximum Ambient Temperature: 45°C

Fixture Specifications

• Dimensions: 320×230×540mm

• Weight: 13.5kg

Packaging Information

• Carton Dimensions: 555×380×430mm

• Gross Weight: 16.5kg
