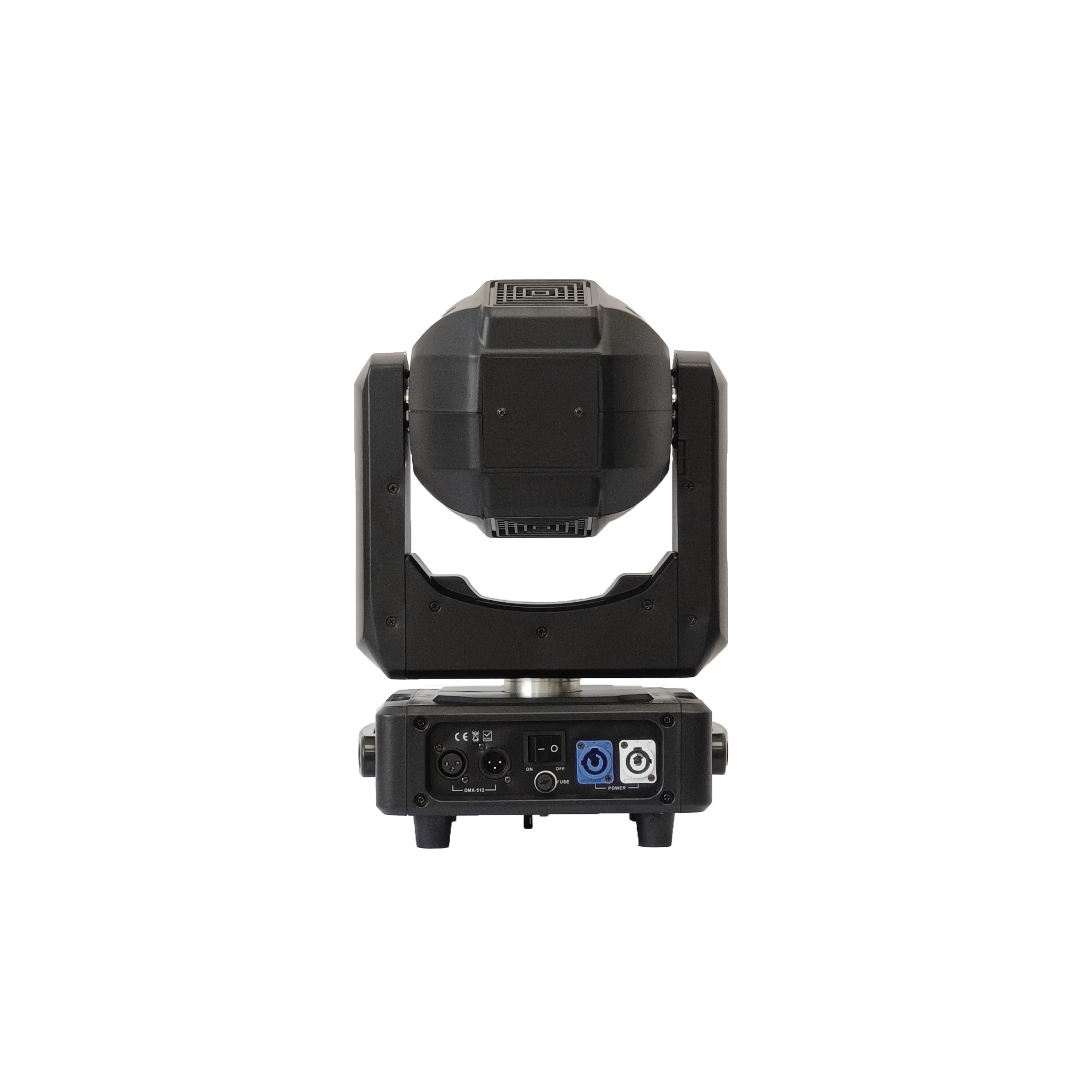

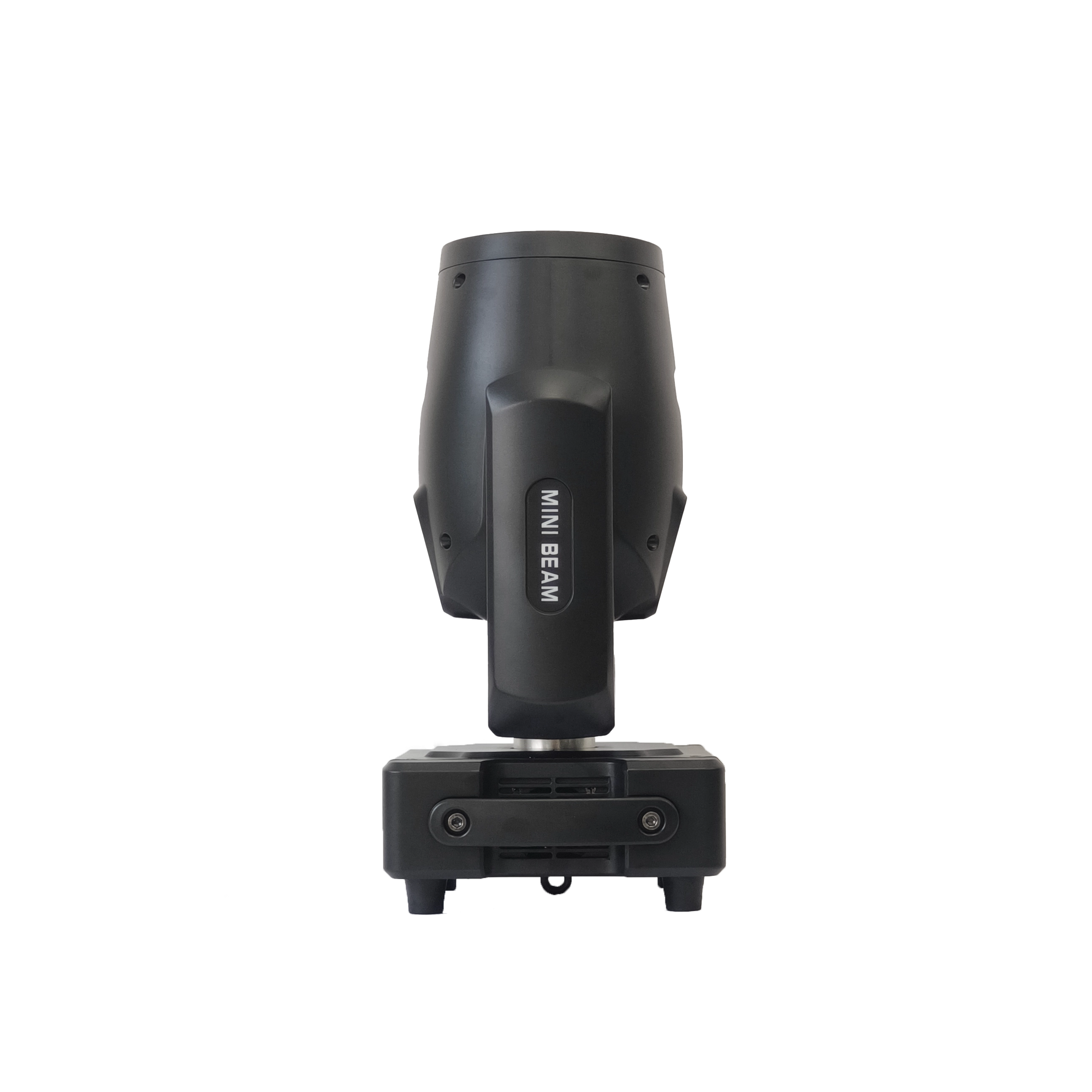

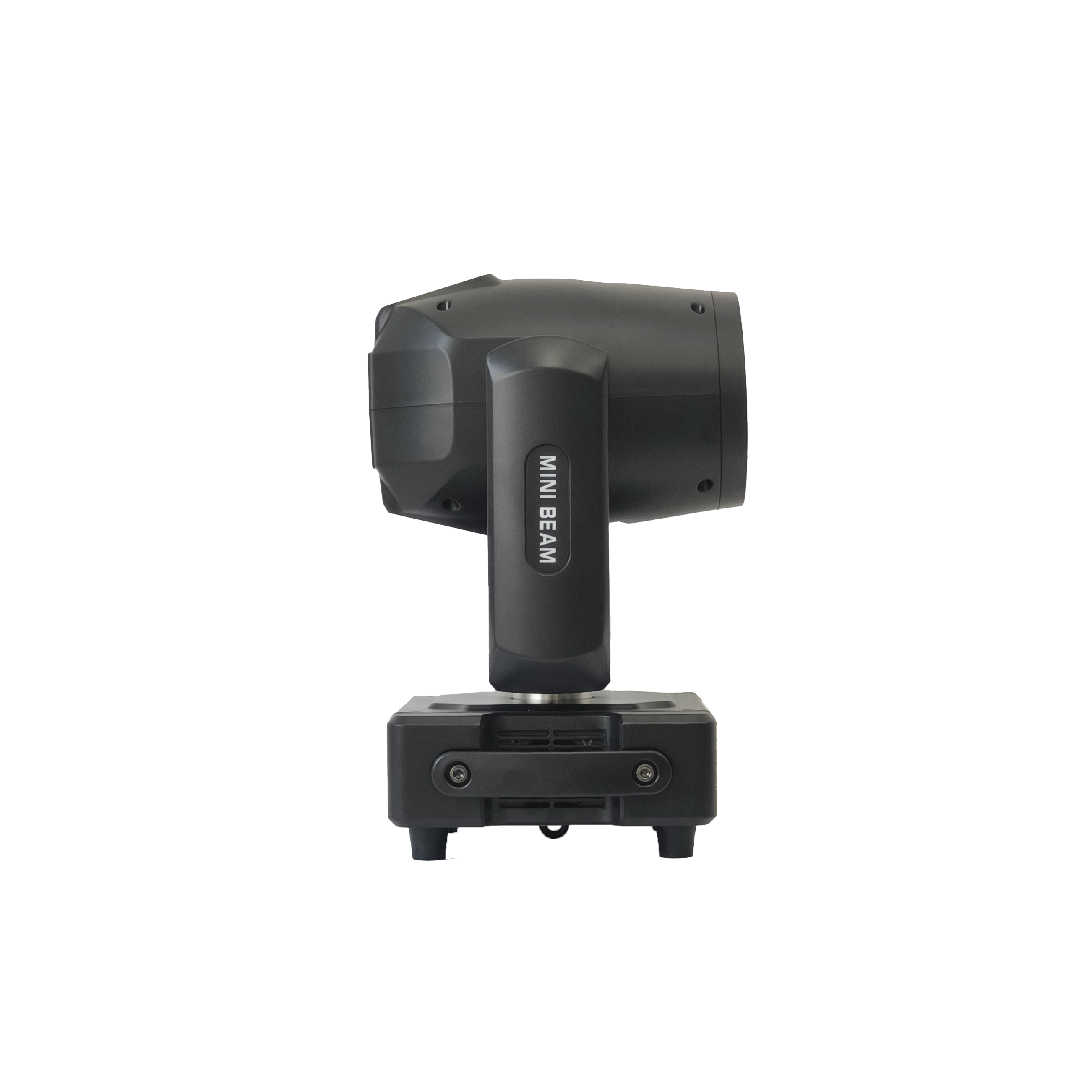

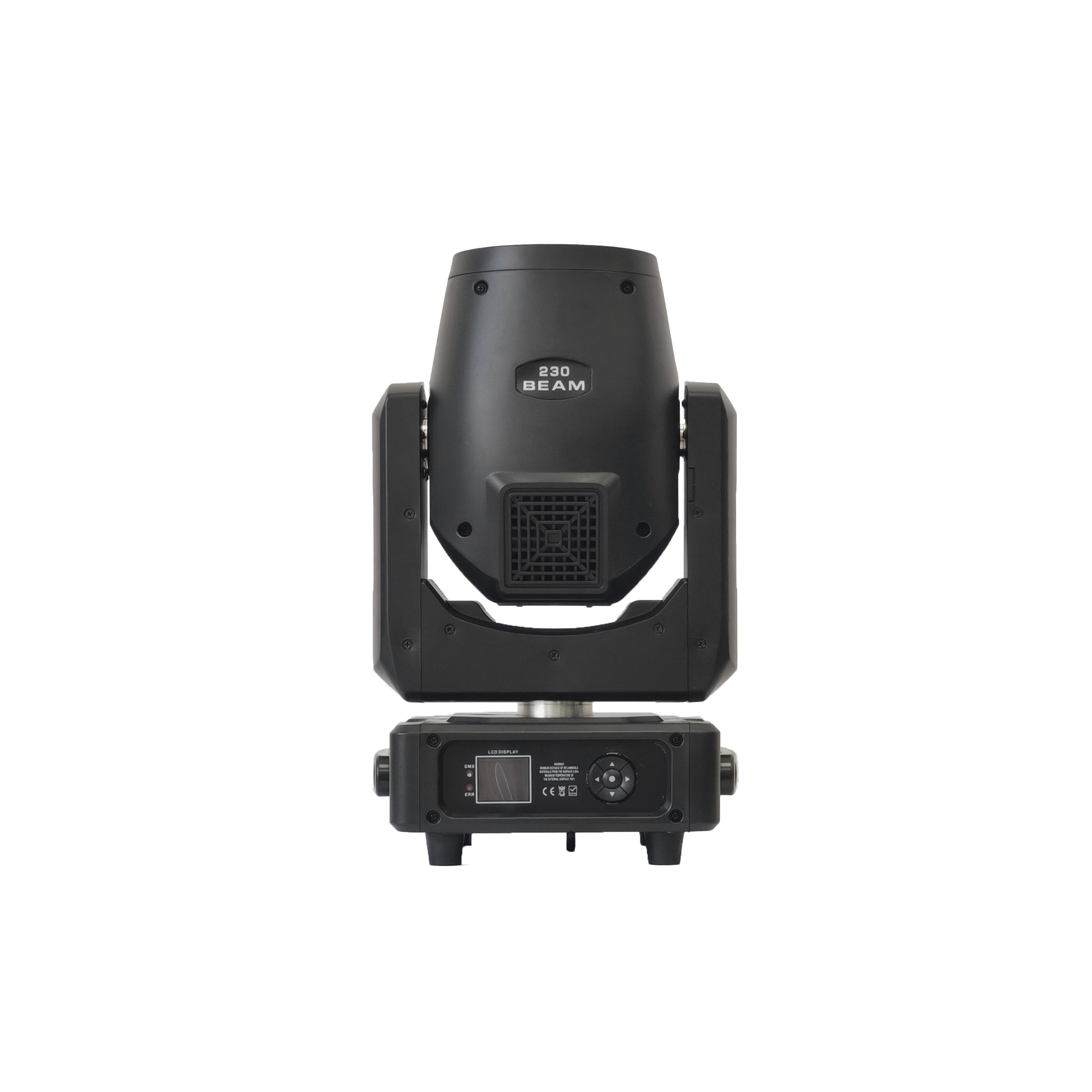

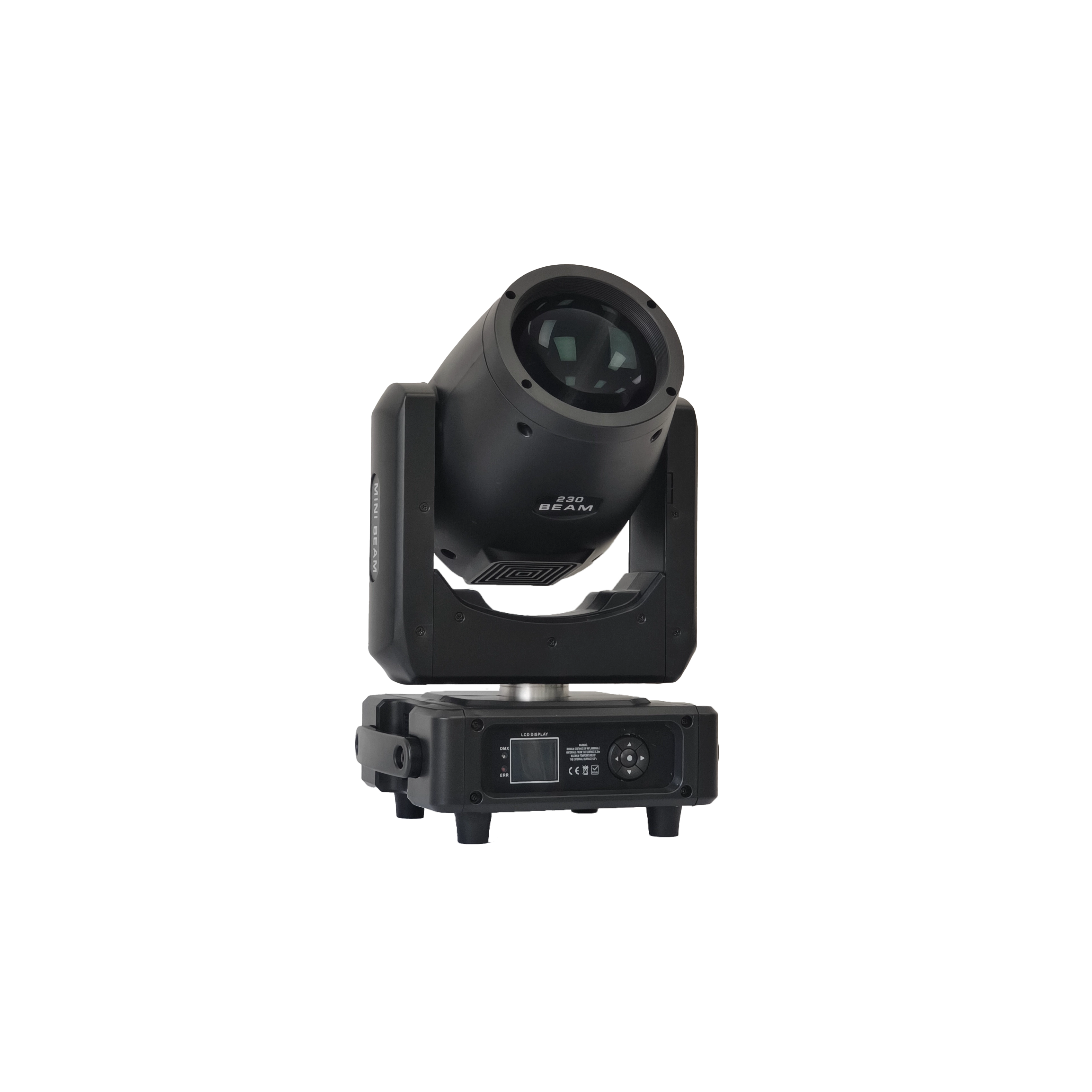

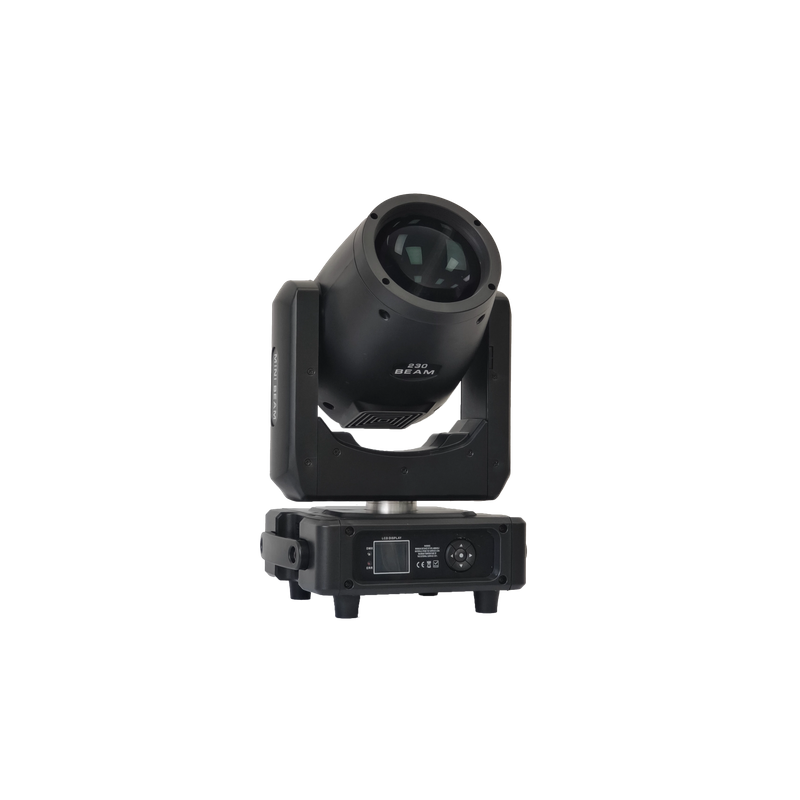

A-230 BEAM

Electrical & Interface

• Input Voltage: AC 100–240V, 50/60Hz

• Power Consumption: 350W

Light Source

• Light Source: 230W discharge lamp

• Color Temperature: 8,000K (adjustable white)

• Luminous Flux: 7,950 lm

Optical System

• Beam Angle: 4° (fixed)

• Focusing: High-quality condenser lens with manual focus adjustment

Control

• DMX Channels: 16/20 channels

• Control Modes: Auto, Master/Slave, DMX

Color Wheel:

14 dichroic filters + open (white)

• Rainbow effect & half-color mixing

Gobo Wheel:

• 17 gobos + open (white)

• Gobo shake effect

• Prism: Rotating 8-facet prism

Pan & Tilt

• Pan Movement : 540°

• Tilt Movement : 270°

• Movement Precision: 8-bit / 16-bit resolution for smooth and accurate positioning

• Speed Control: Adjustable pan/tilt speed

Other Effects

• Strobe: Adjustable (1–14Hz) with variable-speed strobe effect

• Dimming: 0–100% linear dimming

Work Environmental

• Protection Rating: IP20 (indoor use)

• Cooling System: Forced air cooling (fan)

• Operating Temperature: 0°C to 45°C

Fixture Specifications

• Dimensions (W × H × D): 280 × 235 × 470mm

• Weight: 10kg

Packaging Information

• Carton Dimensions: 500 × 345 × 365mm

• Gross Weight: 13kg
