Stage Par 180

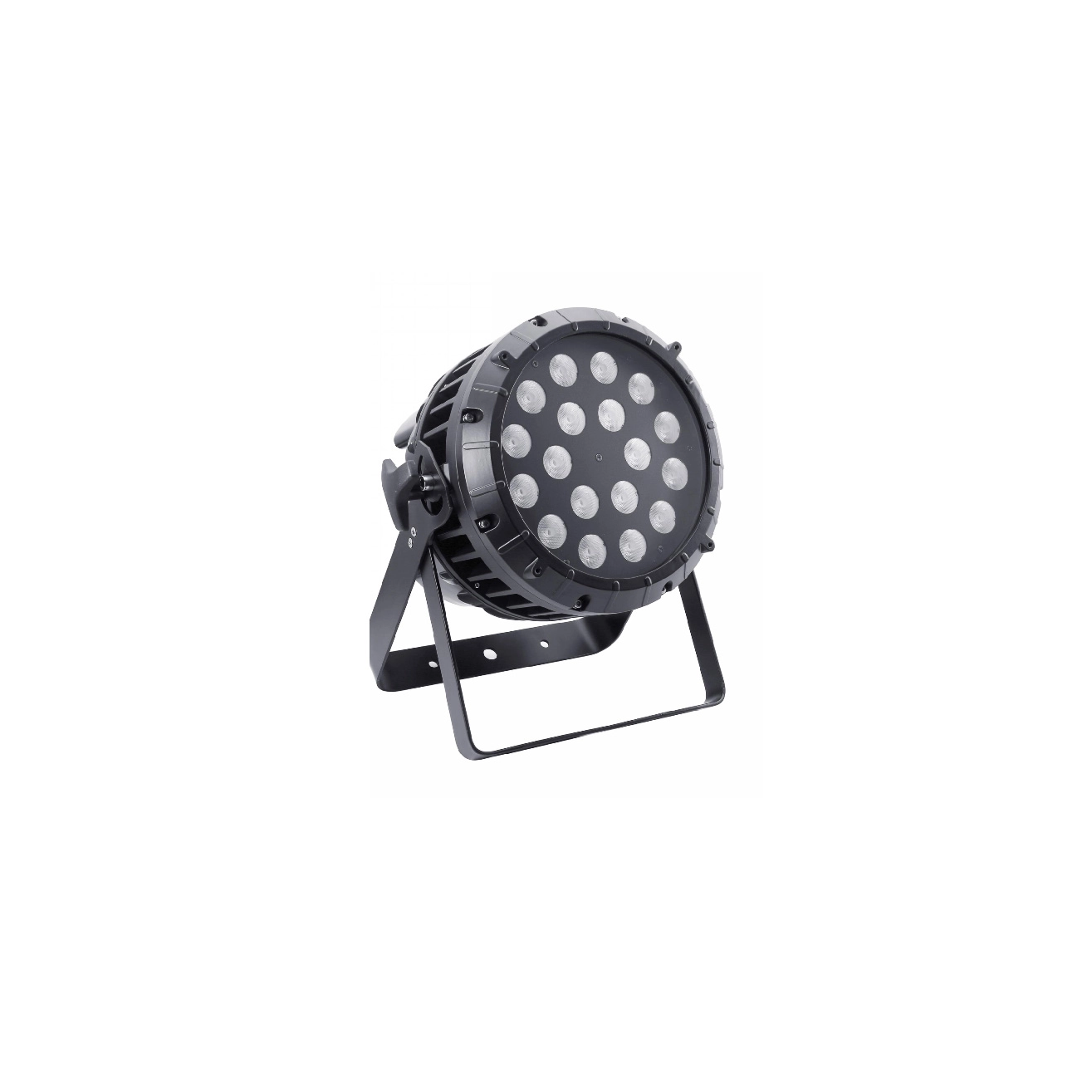

LED 180 Par Light has AC100~240V input voltage, 200W power, using 18x10W RGBW 4 in 1 imported lamp beads. The adjustable lens Angle is 25°/45°, providing 0-100% linear dimming. Luminous flux reaches 4500lm, with IP65 protection level. The product size is 230*294*288mm and the weight is only 7.5KG. Features include die-cast aluminum housing, fanless quiet design. The built-in programs can be selected and run through the light control panel. Support DMX protocol, can choose 5/6/7/8 channel mode.

Brand:
ATD Lighting

Availability:



Inquire Add to Basket

TECHNICAL & SPECIFICATION

Electrical & Interface

Input Voltage: AC 100-240V, 50/60Hz
Power: 200W

Light Source

LEDs: 18×10W RGBW quad-chip (4-in-1) imported LEDs
LED Quantity: 18 PCS

Optical System

Lens Angle: 25°/45° (selectable)

Control

Dimming: 0-100% linear dimming
Built-in Programs: Selectable via fixture control panel
Control Modes:

Standard 3-pin DMX512 protocol
Waterproof power and signal cables with daisy-chain connection

Channel Modes: 6/7 channels

Protection Rating

IP20

Fixture Specifications

Dimensions (L×W×H): 230×294×288mm
Weight: 7.5kg

Packaging Information

Carton Dimensions: 610×600×370mm
Gross Weight: 25.5kg (Four-pack loader carton)
