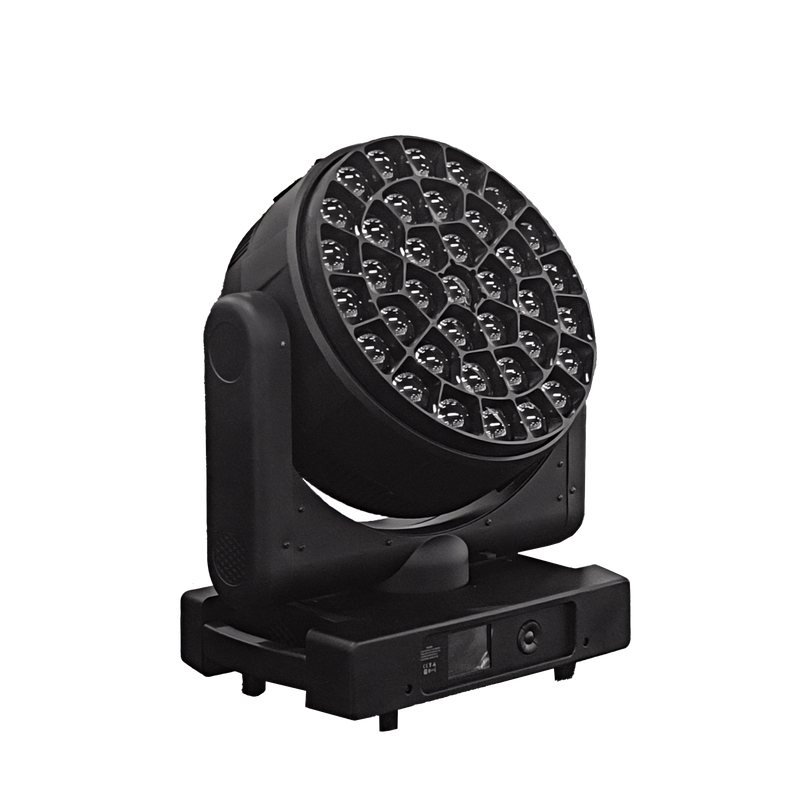

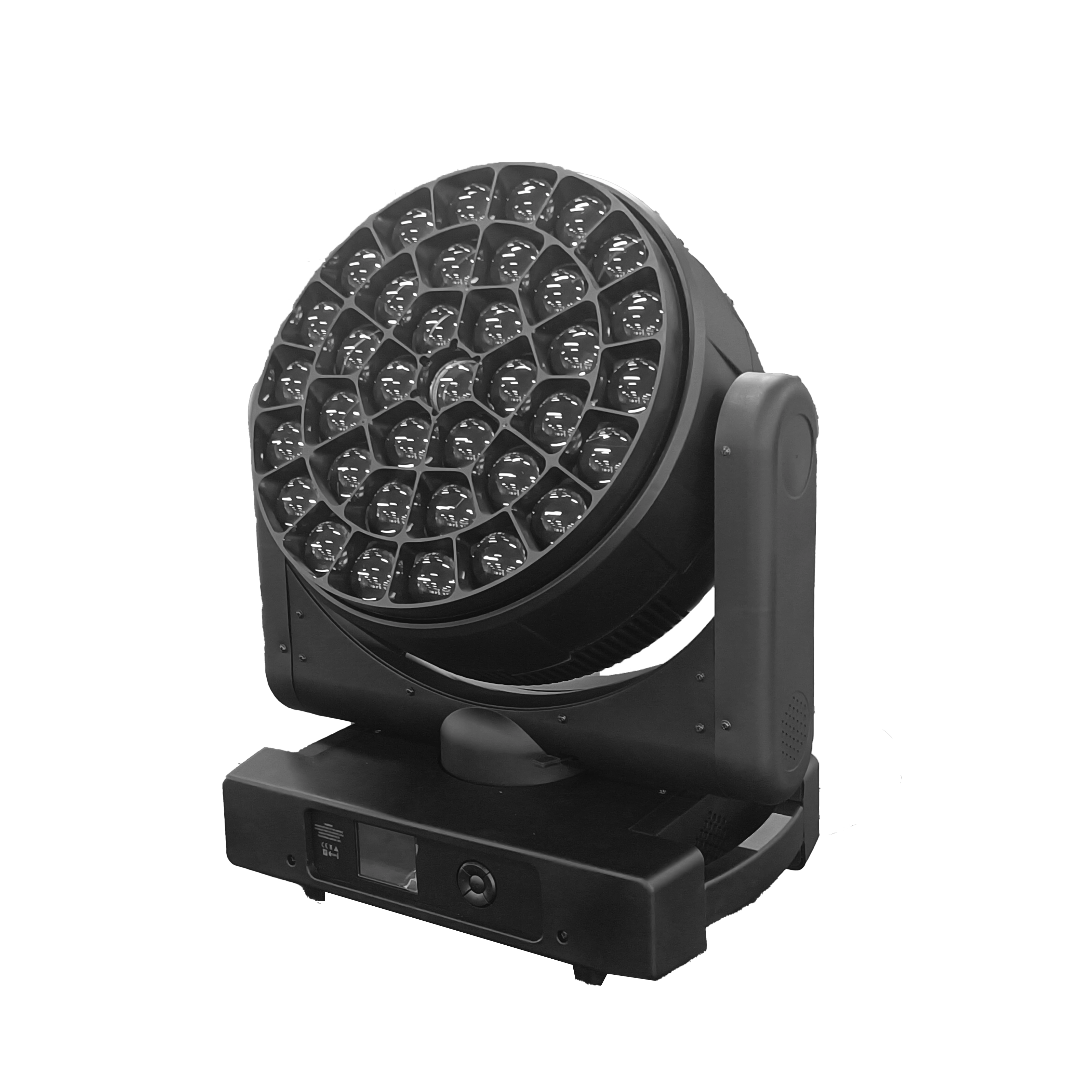

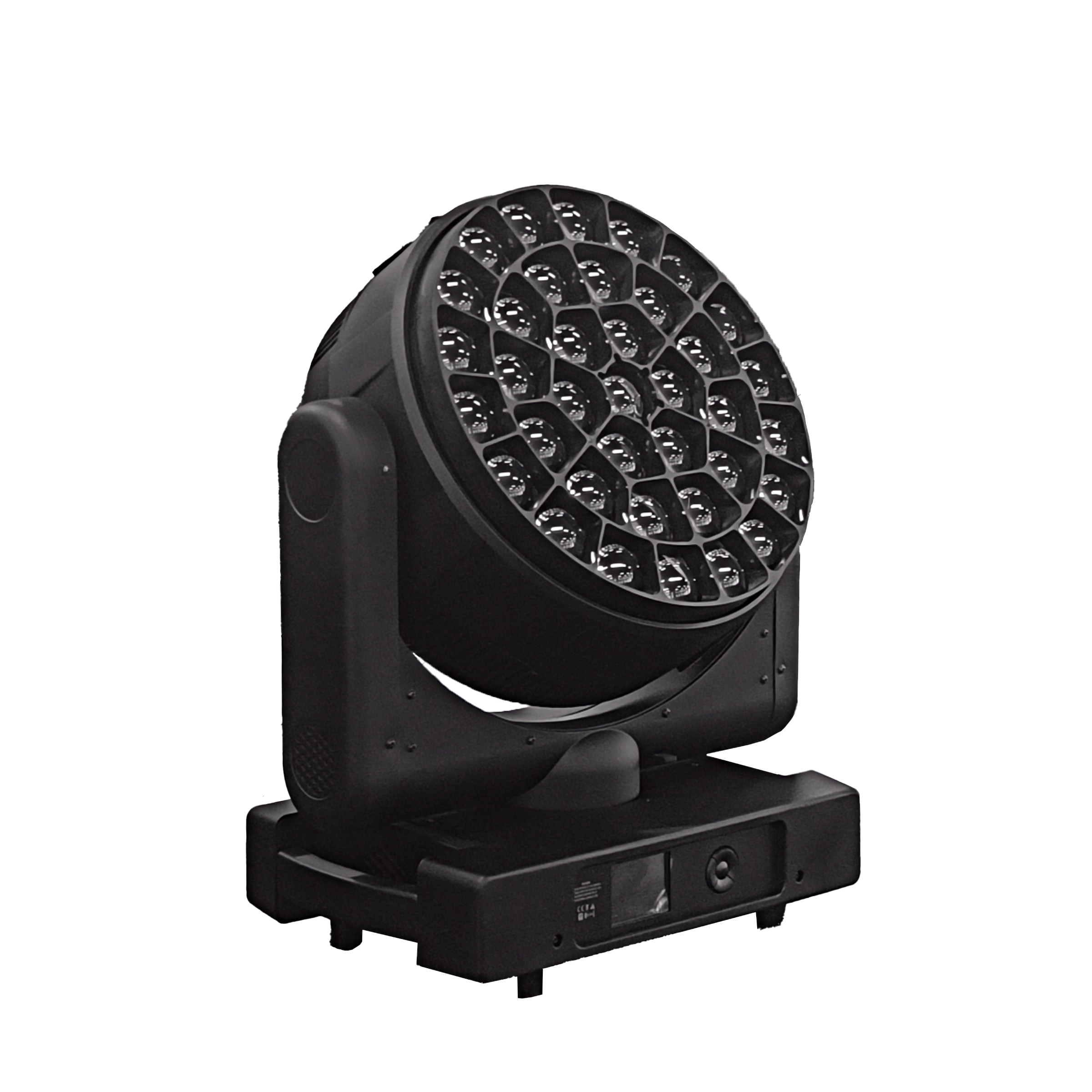

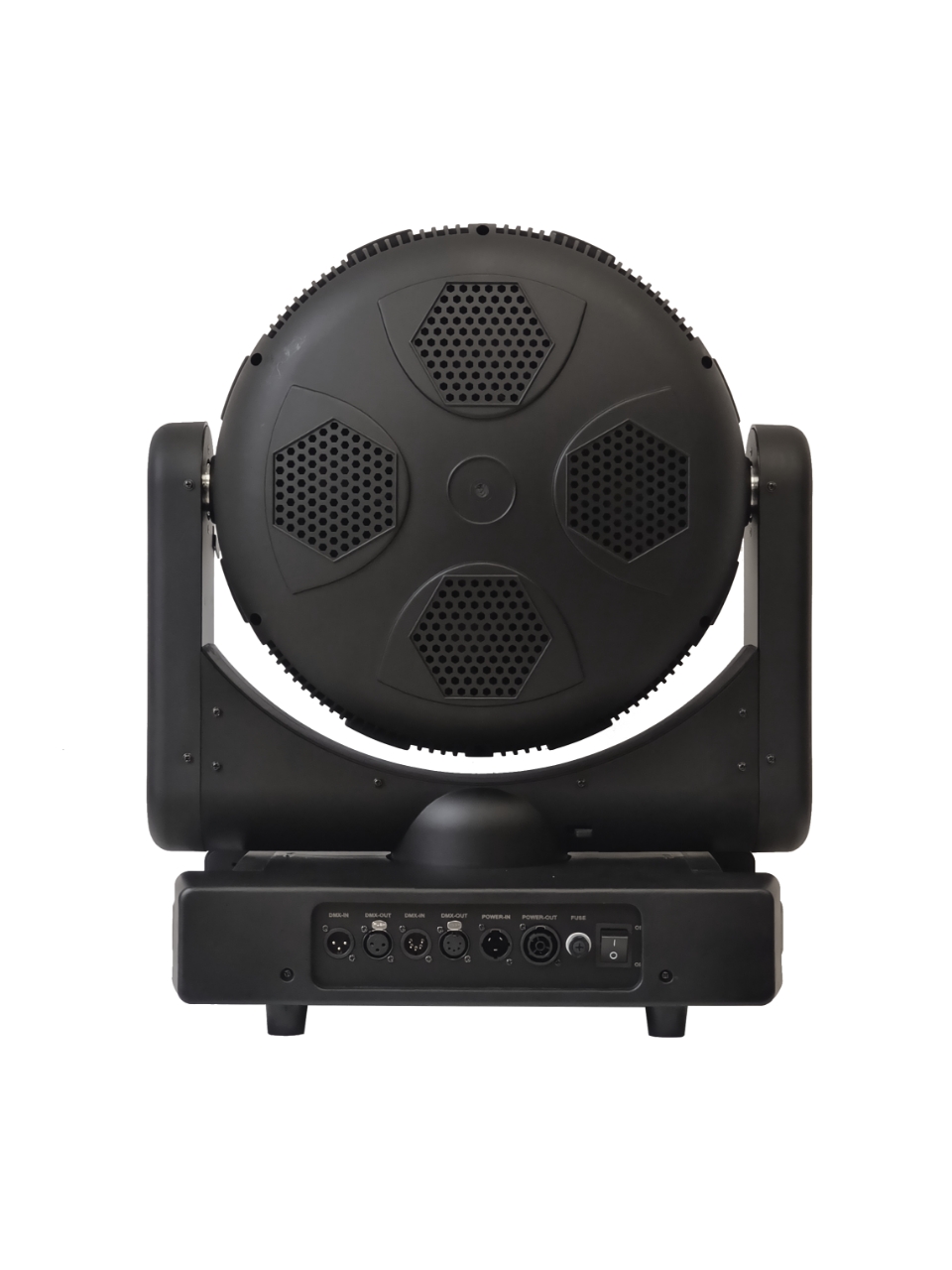

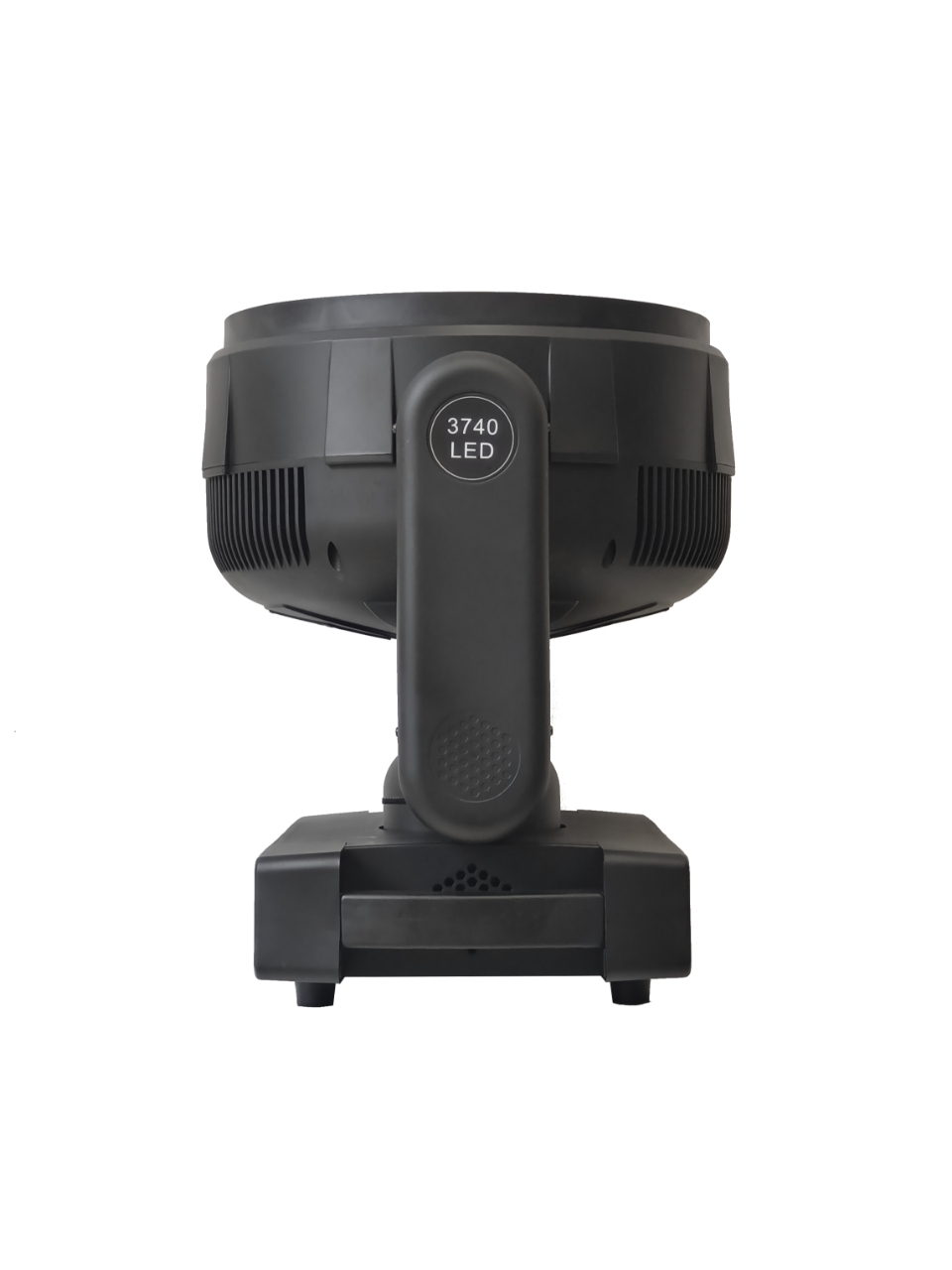

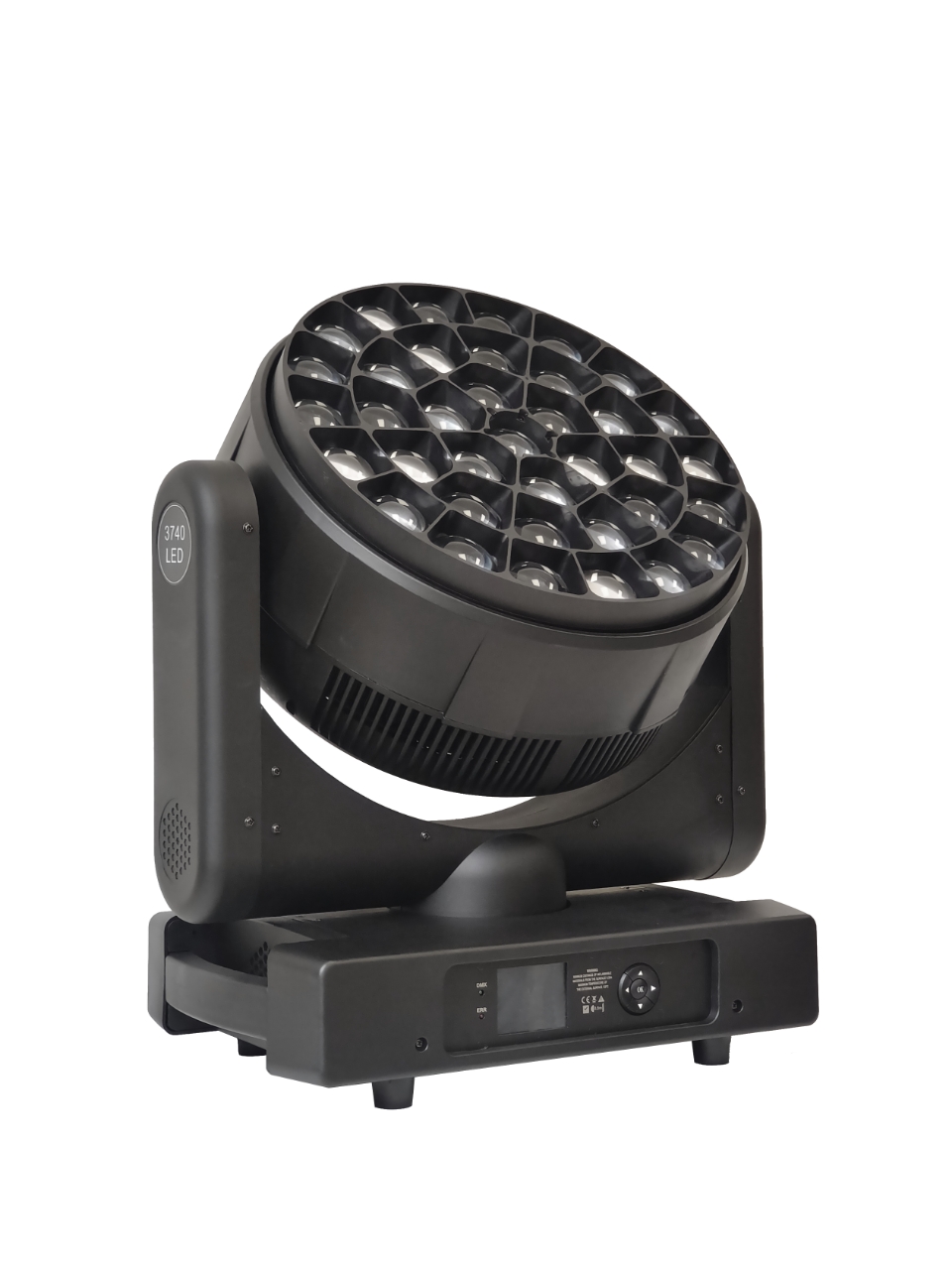

R-3740 Bee

Electrical & Interface

• Input Voltage Range: 100–240V, 50/60 Hz

• Signal Input/Output: 3-pin/5-pin XLR sockets, RJ45 (optional)

• Power Connector: PowerCON input/output

Light Source

• Source: 37 × 40W RGBW LEDs

• CCT (Correlated Color Temperature): 6,000K

• LED Lifespan (L70): 20,000 hours
  *May vary depending on usage conditions and environment

Optical System

• Beam Angle: 4°–60° (motorized zoom)

• Luminous Flux: 16,100 lumens

Control

• Control Channels: 21/22/35/36/111/148CH

• Protocols: DMX512, RDM, Auto/Master-Slave (optional)

• LCD Display

• Firmware Upgrade: Via web server

Dynamic Effects

Color

• Built-in macros, enhanced pixel mapping

• Preset colors

• Dedicated CCT adjustment channel (2,500–8,000K white simulation)

Pan & Tilt

• Pan Movement: 210°

• Tilt Movement: 540°

• Auto-correction for position desync

• 16-bit precision scanning

Dimming/Shutter

• High-resolution 24-bit electronic dimmer (4 curves)

• High-speed electronic shutter & strobe:

• Slowest strobe: 1 flash/sec

• Fastest strobe: 25 flashes/sec

Work Environment

• Max Ambient Temp: 40°C (104°F)

• Max Surface Temp: 90°C (194°F)

• IP Rating: IP20

Fixture specifications

• Dimensions: 329 × 488 × 590mm (L × W × H)

• Weight: 27.5 kg
